Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine

    • Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine
    • Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine
    • Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine
  • Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: ZHMACH
    Certification: CE
    Model Number: ZHF-2017

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: inquiry
    Packaging Details: foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1*20GP 2*40HQ
    Delivery Time: 45days after receive downpayment
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: two sets per month
    Contact Now
    Detailed Product Description
    Processing Type: Foaming Machine Condition: New
    Voltage: 380V Warranty: One Year
    Machine Pump: U.S VIKING PUMP/ JAPANESE Foam Type: Overflow Box And Spray Head
    RS Pulling System: Foaming Top Flatting Function Fall Plate: 7 Section Automatic Adjustale
    Max Output: 300kg/min Machine Motor: Chinese Dongguan Motor



    Memory Foam Mattress Sponge Horizontal Continuous Making Machine With CE



    The ZHF-2017 flexible foam production line is an automatic continous foaming machine for producing flexible polyurethane foam used in furniture,shoe material,packing,electron,garment and transportation industrial.it's the ideal production equipment for large-scale foaming.



    We use the siemens invertor/motor and U.S. viking pump and some good spare parts that good for make the flexible foam. The density we can make is from D8-D100 and we can add abt 50% of the lime powder during density above D23.



    Main specification



     Oven Length 18m
     Foam Height 1.0-1.25m
     Foam Width 1.0-2.25m
     foam desity 8-200kg/m³
     total power 130KW
     inner coveyer length 18m
     side board adjustable width 0.98-2.3m
     conveyer belt speed 0-8m/min
     fall plate seven section adjustable
     total output 100-300kg/min
     machine dimension L35× W4.2 ×H3.2m


    How is the packing of the machine?



    The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.



    How many container will be needed for the whole set of machine?



    For the standard 13 groups of Automatic continous foam machine Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.

    We will try the best way to pack all the machine well and also save the freight cost.





    Our Services



    1. We will help to design the layout of the machine that put in your factory.



    2. We will send 2-4 experience engineers to install and testing the machines.



    3. We will teach your engineer how to operate the machine and how to maintain the machines.



    4. We will give you the machine operation manual and the best formulation for target products that you are going to make.



    5. We will help to buy the best raw material for making the foam if you needed.

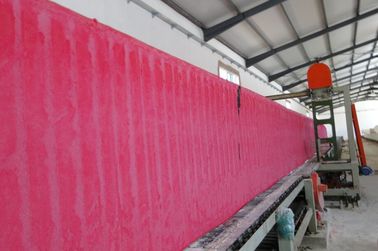

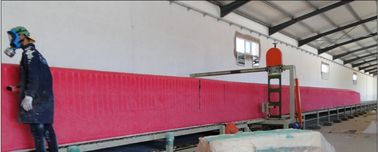

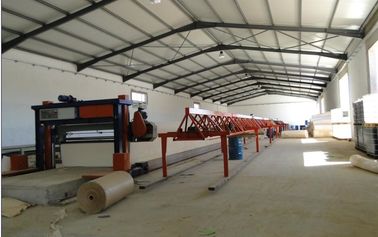

    The main part of the machine



    Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine



    Automatic Continous Flexible Foam Production Line , Foam Sheet Making Machine
