High Density Hard Rigid PU Foam Making Machine , Polyurethane Foam Injection Machine

High Density Hard Rigid PU Foam Making Machine , Polyurethane Foam Injection Machine

    • High Density Hard Rigid PU Foam Making Machine , Polyurethane Foam Injection Machine
    • High Density Hard Rigid PU Foam Making Machine , Polyurethane Foam Injection Machine
  • High Density Hard Rigid PU Foam Making Machine , Polyurethane Foam Injection Machine

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: ZHMACH
    Certification: CE
    Model Number: ZHF-2017

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: inquiry
    Packaging Details: foam machine Automatic continously foam making machine nude packing together with some paper and plastic film and foam sheet some small spare parts in wooden box one standard machine need 1*20GP 2*40HQ
    Delivery Time: 45days after receive downpayment
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: two sets per month
    Contact Now
    Detailed Product Description
    Product Type: Automatic Continously Foam Making Machine Dimension(L*W*H): L35m*W4m*H3m
    Voltage: 3PAHSE 380V Machine Pump: U.S. VIKING /CHN Shanghai Hangfa/JAN SHIMADZU
    Flow Meter: Glass Flow Meter RS Pulling System: R.S.pulling System With The Plastic Film
    Raw Material: Polyurethane Machine Control Way: Automatic PLC And Invertor Control
    Block Cutter: Blade & Saw Tooth Double Knife Type Feature: High Efficiency



    High Density Hard Rigid Pu Foam Making Machine , Polyurethane Foam Injection Machine



    Product Description



    Full-automatic Continuouse Polyurethane Foam Making Machine is the automatic horizontal continously foaming machine that make the furniture foam like sofa and mattress. The standard machine was together with 13 kinds of raw material.



    For the process of foaming:



    Loading all the raw materials inside the material tank with the loading system--control the temperature of the raw material inside the tank with the chiller--check the flow of all the raw materials before foaming--make some small sample test before foaming (make sure the flow and everthing is correct)--Put the karft paper and the plastic film-- foaming process



    Main specification



    Max.Output Capacity 200~350kg/min(Continuous Type)
    Mixer Total Power 37kw
    Max.Mixing Speed 2500~6000r/min
    Foaming Type Trough & Sprayer
    Standard Material Q.T.Y. 13 Groups.
    Foaming Size W2300mm*H1300mm(Width Adjustable)
    Control System PLC Digital Touch Screen
    PPG Tank 5Ton*1Set.
    POP Tank 5Ton*1Set.
    TDI Tank 5Ton*1Set.
    MC Tank 2Ton*1Set.
    Caco3 Tanks 5Ton*1Set
    T-9/Amine/Color 1ABCD/ Silicone /Water Tanks 180L*8Sets
    Side Wall Size L16m*H1200mm
    Fall plate L8.5m*W0.98~2.4m(Adjustable)
    Foaming Platform L2000mm*W3000mm*H700mm
    Conveyor Line L16.9m
    Side/Bottom Paper Feed & Rewind System 2Sets.
    Walkway W500mm*L15m
    Air Valves U.S. Standard
    Chiller(Both Cooling & Heating System) 1Set*1.5HP
    R.S.Pulling System 1Set.
    Foaming Density Range 8~150kg/Cubicmeter.
    Match With Block Cutter 1Set.
    Total Motor Power Approx 125kw.
    Machine N.W. Approx 30 Ton
    Floor Space Required L45m*W5m*H4.5m.



    FAQ:



    Q: How many days for the install and testing of the machine?



    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.



    Q: For the cost of the engineer how much I need to pay?



    A: You need to pay USD40 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.



    Q:During the foaming if we have some problems abt the foam and the machine how can we do ?



    A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.

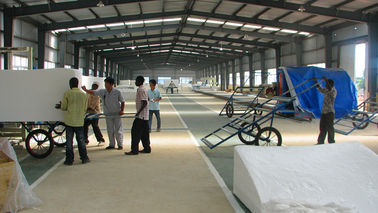

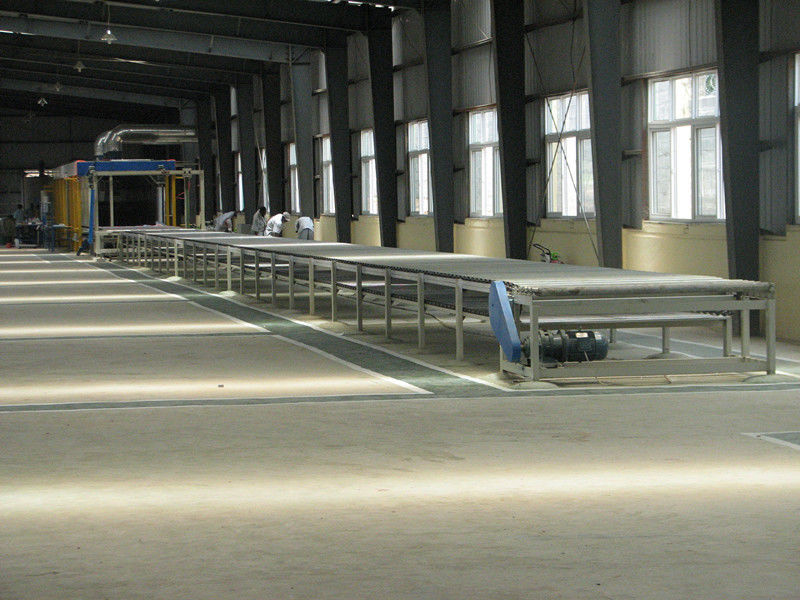

    The main part of the machine



    High Density Hard Rigid PU Foam Making Machine , Polyurethane Foam Injection Machine



    High Density Hard Rigid PU Foam Making Machine , Polyurethane Foam Injection Machine



    Specification for 13groups of Horizontal foaming m...
