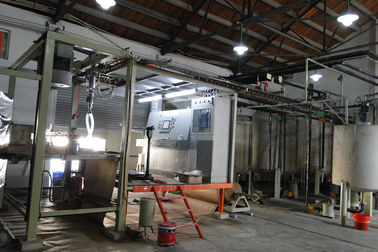

Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen

Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen

    • Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen
    • Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen
  • Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen

    Product Details:

    Place of Origin: Guangdong China (Mainland)
    Brand Name: ZHMACH
    Certification: CE Certificate
    Model Number: ZFP-2017

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: inquiry
    Packaging Details: Paper and Film, Wooden case The whole set of one standard 13groups need 1*20GP and 2*40HQ.
    Delivery Time: 45 days
    Supply Ability: One set per month
    Contact Now
    Detailed Product Description
    After-sales Service Provided: Engineers Available To Service Machinery Overseas Pump: U.S. Viking /Japan Shimadzu/China Shanghai
    Foaming Mode: Horizontal Foaming Foam Block Cutter: Blade Type And Saw Tooth Type
    Control: Automatic PLC With Touch Screen Dimension(L*W*H): L35*W4*H3m
    Fall Plate: 7 Section Adjustable Voltage: 380KV
    Inverter: Siemens/ Delta /Danfoss RS Pulling System: Foaming Top Flatting Function



    Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen





    Product Description



    This is the low pressure polyurethane foam machine can make the foam for mattress and sofa and also for shoes memory foam.

    It is automatic PLC control and save the formular in the PLC then you can just pressure one button foaming begin. With one experience engineer and together with 9 to 10 workers then you can start the machines.



    The device foam production line is an automatic continous foaming machine for producing flexible polyurethane foam used in furniture,shoe material,packing,electron,garment and transportation industrial.it's the ideal production equipment for large-scale foaming.



    We use the siemens invertor/motor and U.S. viking pump and some good spare parts that good for make the flexible foam. The density we can make is from D8-D100 and we can add abt 50% of the lime powder during density above D23.





    [Specifications]





    (1)The whole machine parts specifications:



    1. Foaming control Platform(standard) L3m×W2.52m×H0.7m

    2. Oven declining board (standard) L9m×W0.98m~2.30m

    3. Oven side links(standard) L18m×W2.3m×H1.2m

    4. Oven machine frame(standard) L18m ×W4m×H3m

    5. Oven inner conveyer line (standard) L18m×W2.3m×H0.83m

    6. Foam block cutter machine (standard) W2.3m×H1.30m(saw/knife with cross type )

    8. Total length 33m× width 4m×height 3m

    9. Foaming material Group: 13 groups, man-machine interface, automatically computer contro

    10. Foaming width 980mm~2250mm

    11. Foaming height Max 1300mm



    Motor Guangdong brand
    Pump Viking pump & Chinese pump
    Invertor Siemens brand
    PLC Siemens
    Temperature Control system





    Material pot types: (The work pressure in the pot is normal pressure)



    Type Use

    Specification



    Qty
    Big material tank PPG 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
    Big material tank POP 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system

    1



    Big material tank CaCo3 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
    Big material tank TDI 5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system

    1



    Big material tank Flame retardant

    2m³/δ3m stainless steel, with filter system



    1
    Big material tank MC

    2m³/δ2mm stainless steel, with filter system



    1
    Small material tank Si 180L/δ1mm stainless steel 1
    Small material tank A-33 180L/δ1mm stainless steel, with filter system 1
    Small material tank T9 180L/δ1mm stainless steel, with filter system 1
    Small material tank H2O 180L/δ1mm stainless steel 1
    Small material tank Color 180L/δ1mm stainless 1
    Small material tank Anti-yellow 180L/δ1mm stainless steel 1
    Small material tank Black 180L/δ1mm stainless steel 1
    Floor powder mixing tank PPG, POP, Powder 1.5m³/δ3mmA3 steel plate, with filter system 1
    Filter tank POP, Powder

    1.5m³/δ4mmA3 steel plate



    1





    Remark:The above only for reference. All the data is subjected to sold products.





    Our Services



    1. We will help to design the layout of the machine that put in your factory.



    2. We will send 2-4 experience engineers to install and testing the machines.



    3. We will teach your engineer how to operate the machine and how to maintain the machines.



    4. We will give you the machine operation manual and the best formulation for target products that you are going to make.



    5. We will help to buy the best raw material for making the foam if you needed.





    FAQ



    Q: How many days for the install and testing of the machine?



    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.



    Q: For the cost of the engineer how much I need to pay?



    A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.



    Q:During the foaming if we have some problems abt the foam and the machine how can we do?



    A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.



    Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen


    Horizontal Mattress Low Pressure Foam Machine With Automatic PLC Touch Screen


    You are warmly welcome come and visit our factory.
