37KW Sponge Mattress Low Pressure Foam Machine For Hard / Soft Polyurethane Foam

37KW Sponge Mattress Low Pressure Foam Machine For Hard / Soft Polyurethane Foam

    • 37KW Sponge Mattress Low Pressure Foam Machine For Hard / Soft Polyurethane Foam
    • 37KW Sponge Mattress Low Pressure Foam Machine For Hard / Soft Polyurethane Foam
  • 37KW Sponge Mattress Low Pressure Foam Machine For Hard / Soft Polyurethane Foam

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: ZHMACH
    Certification: CE Certificate
    Model Number: ZHF-2017

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: inquiry
    Packaging Details: Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.
    Delivery Time: shipped in 45 days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1.5 set per month
    Contact Now
    Detailed Product Description
    Name: Low Pressure Foaming Machine Motor: Siemens/ Dongguan
    Invertor: Siemens/ Delta Foaming Way: Spray Head And Overflow Box
    Mixing –head Motor: QHMACH Mixing Head R.S. System: R.S Pulling System With Plastic Film
    Control: Automatic PLC Control After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Certification: CE Pump: US. Viking/ Chinese/ Japanese



    37KW Sponge Mattress Low Pressure Foaming Machine High Speed 220L / Mould

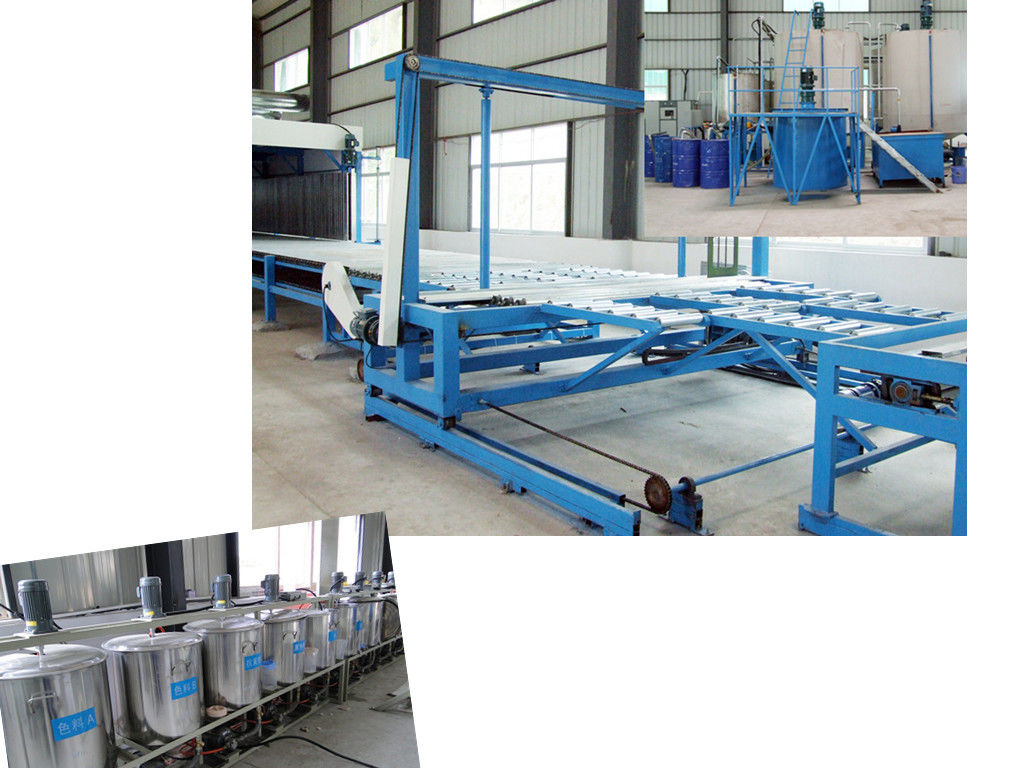

    Horizontal Automatic Continuous Sponge Machine is a automatic continuous foaming machine for producing flexible polyurethane foam used in furniture, shoe material, packing, electron, garment and transportation industrial. It’s the ideal production equipment for large-scale foaming.



    (1)The whole machine parts specifications:



    1, Foaming controlling Platform (standard) L3m×W2.52m×H0.7m



    2, Oven declining board (standard) L6.8m×W0.98m~2.3m



    3, Oven side links (standard) L18m×W2.3m×H1.2m



    4, Oven machine frame (standard) L18m ×W4m×H3m



    5, Oven inner conveyer line (standard) L18m×W2.3m×H0.83m



    6, Foam block cutter machine (standard) W2.3m×H1.30m(knife belt with cross type )



    7, Side film lift system one set



    (2) Main Specification



    Oven Length 18m Inner Conveyer length 18m
    Foaming Height 1.0-1.25m Side Borar Adjustable Width 0.98-2.3m
    Foaming Width 1.0-2.25m Conveyer Belt Speed 0-8m/min
    Foaming Density 8-100kg/m3 Fall Plate Six section adjustable
    Total Power 130KW Total output 100-300kg/min





    (3) Material pot types: (The work pressure in the pot is normal pressure)



    Type Use

    Specification



    Qty
    Big material tank PPG

    5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system



    1
    Big material tank POP

    5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system



    1



    Big material tank CaCo3

    5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system



    1
    Big material tank TDI

    5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system



    1



    Big material tank Flame retardant

    2m³/δ3m stainless steel, with filter system



    1
    Big material tank MC

    2m³/δ2mm stainless steel, with filter system



    1
    Small material tank Si 180L/δ1mm stainless steel 1
    Small material tank A-33 180L/δ1mm stainless steel, with filter system 1
    Small material tank T9 180L/δ1mm stainless steel, with filter system 1
    Small material tank H2O 180L/δ1mm stainless steel 1
    Small material tank Color 180L/δ1mm stainless 1
    Small material tank Anti-yellow 180L/δ1mm stainless steel 1
    Small material tank Black 180L/δ1mm stainless steel 1
    Floor powder mixing tank PPG, POP, Powder 1.5m³/δ3mmA3 steel plate, with filter system 1
    Filter tank POP, Powder

    1.5m³/δ4mmA3 steel plate



    1




    (4) Marks:
    1. According to seller's standard designed drawing diagrame to arrange the production and inspection.
    2.  if customer reqiure, techincians will be sent by seller, and the turn-round tickets fee, vise fee, $40 per day of allowance fee and hotel accommodation are in charge of buyer.
    3.  Payments Terms: T/T 30% advance before production.the balance of total amount 70% will be paid before shipment.
    4.  Delivery forms: Send to ShenZhen Seaport
    5. Spare parts: Offer assorted maintain tools.
    6.  Package: paper & film package.
    7. Voltage: all the eqiupments are: 380V, 50HZ, 3P.(Voltage can be changed, but price need to increase 3%)
    8. Delivery date: 45 days (after seller get the advance).
    9. All the machines maintain for one year, if the damages caused by machine itself, excluding the man-made accidents, the broken parts offered by seller in free of charge, but the transport cost for buyer's account.




    FAQ


    Q: How many days for the install and testing of the machine?

    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.

    Q: For the cost of the engineer how much I need to pay?

    A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.

    Q:What kind of raw material tools we need to prepare for the testing?

    A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.

    Q: After the machine testing if we need some engineer to stay in our factory can you help to find?

    A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.
