|Place of Origin:||Guangdong China (Mainland)|
|Minimum Order Quantity:||one set|
|Packaging Details:||paper ,wooden cases & film packageFilm|
|Delivery Time:||30 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||two sets per month|
|Max Foam Process Height:||1200mm (It Can Be Adjusted By Customer's Requirments)||Max Foam Process Length:||2000mm(It Can Be Adjusted By Customer’s Requirments)|
|Max Foam Process Width:||2000mm||Cutting Speed:||0-30m/min|
|Cutting Precision:||+/-0.5mm||Blade Speed:||0-1200m/min(Adjustable)|
|Blade Type:||Circulating Sawtooth Blade||Motor Details:||2x1.5Kw,2x0.75Kw Mitsubishi Servo Motors|
|Motor Brand:||Mitsubishi,Japan||Inverter Brand:||Delta|

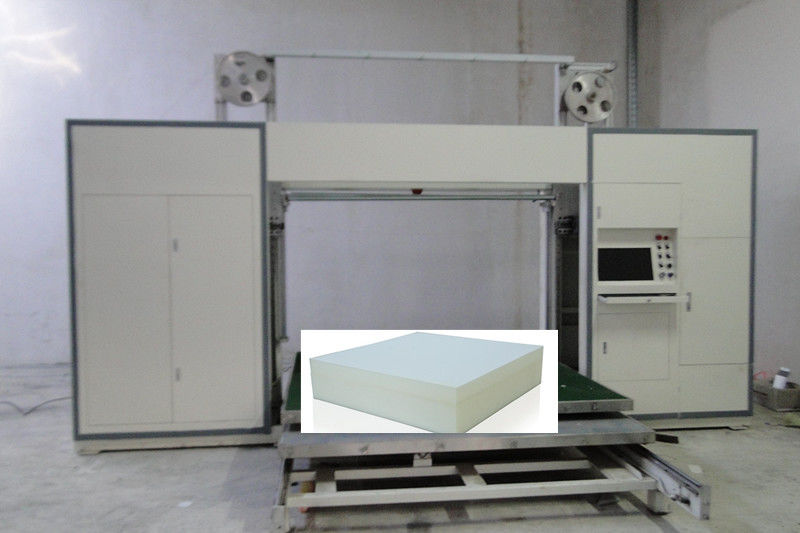

Complex Vacuum Table Type Oscillating Blade Sponge Contour Cutter For Memory Foam
Cutting foam size max:W1200*L2400*H1200MM
Working speed: 0-10m/min (can be adjusted)
Cutting ways: Loop cutting
Blade line speed: 0-1200m/min(can be adjusted)
Software:QH foam cutting system
Rotating blade motor and X,Y through-drive: Mitsubishi servo motor system
Blade motor: Dongguan
Control system: PC +multipole motion control card
Circulating sawtooth knife( Imported from German)
Total power: 8KW
The external size of the machine:L6000*W45000*H3200MM
Air compressor(provide for client)
Parts: Sawtooth knife: 3piece; Repair tool: 1set
1. Q: what kind of CAD software the machine uses?
A: For the CAD software ,our machine uses 2004 or 2006(you prefer )
2. Q: about the CAD software, what's its name?
A: The name is Auto CAD Software
3. Q: where do you sell your machines mostly? which countries?
A:our main market is Russian, Middle East, Canada,USA,Austral,Mexico,Brazil for different kind types
4. Q: the operating system which you use is windows, right?
what kind of windows? XP? or Windows 7?
A: Yes ,it is Windows XP.
When operated,Our machine doesn't need to use network,We usually use XP for its stability.Also windows 7 is OK.
5. Q: is your software licensed or it's illegal? ("cracked")
A: our own profiler cutting software is develop by ourselves. It is origina
Q: but the auto-cad and the windows? the auto-cad and the windows are original too
I am asking this question because our company use only licensed software
A: windows is licensed; AutoCAD is testing type. our machines do not include the licensed AutoCAD
if you have any drawing software, you can make the DXF file.
6. Q: the differences between our Fast Wire CNC Cutting machine and Oscillating
Blade CNC Blade cutting Machine.
A: First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutters
use high-speed toothed blade.
Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material,
the better cutter is Oscillating Blade CNC cutter.
Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material
needs an extra dust pelletizing system and the soft material also is not good for the fast wire
7. Q: For reputation and website:
A: for the reputation ,we are 8 years golden supplier on Alibaba.
And our engineers have researched our machine more and improved it better and better. We
promise our machine will be as good as we told. Even we keep 10% for the guarantee until to
install the machine well and the client satisfy with our machine.
