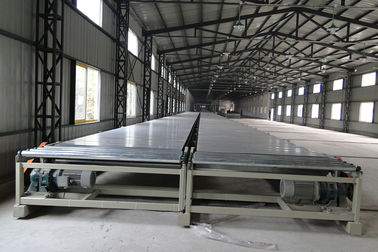

Full Automatic Low Pressure Polyurethane Foam Machine , High Speed Foam Production Line

    • Full Automatic Low Pressure Polyurethane Foam Machine , High Speed Foam Production Line
    • Full Automatic Low Pressure Polyurethane Foam Machine , High Speed Foam Production Line
  • Full Automatic Low Pressure Polyurethane Foam Machine , High Speed Foam Production Line

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: ZHMACH
    Certification: CE Certificate
    Model Number: ZHF-2017

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: inquiry
    Packaging Details: Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.
    Delivery Time: shipped in 45 days after payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 1.5 set per month
    Contact Now
    Detailed Product Description
    Name: Low Pressure Foaming Machine Overall Dimension: 35m*4.55m*3.2m
    Density: 8Kg/m³~100Kg/m³ Product Width: 1200mm~2300mm (adjutable)
    Mixing Head: Siemens Tranducer Maximum Capacity: 200~300L/min
    Motor Types: Guangdong Raw Material: PPG, TDI, MC, A33, T9, Silicone Oil, H2O, Pigment, Ect
    Small Material Tank: 180L/δ1mm Stainless Steel Filter Tank: 1.5m³/δ4mmA3 Steel Plate


    Full Automatic Low Pressure Foam Machine 300kg/min , Polyurethane Foam Production Line





    This machine is the automatic horizontal continuously foam making production line make the foam for mattress and sofa. This machine control by the PLC and invertor automatic with the touch screen. Can be save more than 200sets of formular inside it is easy for the user to operate the machine and we will also offer the formular and all the technology.


    (1) The whole machine parts specifications:


    1, Foaming controlling Platform (standard)    L3m×W2.52m×H0.7m

    2, Oven declining board (standard)    L6.8m×W0.98m~2.3m

    3, Oven side links (standard)     L18m×W2.3m×H1.2m

    4, Oven machine frame (standard)     L18m ×W4m×H3m

    5, Oven inner conveyer line (standard)     L18m×W2.3m×H0.83m

    6, Foam block cutter machine (standard)     W2.3m×H1.30m(knife belt with cross type )

    7, R.S. Pulling system    one set


    1, Dimension:Total length 35m×Total width 4m×Total Height 3m
    2, Foaming material Group: 13 groups, man-machine interface, both manual and computerized control.
    3, Foaming width: 980mm~2350mm
    4, Foaming height: Max 1300mm
    5, Foaming density: 8Kg/m³~100kg/m³
    6, Foaming speed: 2000r/min~7000r/min
    7, Max total output:300kg/min
    8, Material spraying way:
    ① The way of down sprayer head (upper, down, front, back can be adjusted)
    ② The way of trough overflow pipe.
    9, Controlling way of foaming:
    ①PLC controlling, can continuously foaming two different formulas in one time
    ②All inverter controlling foaming and work in phase with the production line
    ③Oven declining board height and width can be adjusted by control box.
    ④Oven side links width can be adjusted by control box.
    10, Mixing –head motor: 37kw
    11, Total power: About 90kw




    (2)Transducer Types


    Model Power/kw


    Qty Brand
    G120 37

    Mixing head

    1 Siemens
    G120 7.5

    POP, CaCo3

    2 Siemens
    G120 5.5


    1 Siemens
    G120 4

    TDI, Flame retardant

    2 Siemens
    G120 2.2

    MC, color

    2 Siemens
    G120 1.5

    Water, Ann, Si, Tin, Color Anti-yellow etc

    7 Siemens
    G120 0.75

    Spray head

    1 Siemens
    VFD-B 5.5/3.7/1.5

    Oven inner conveyer line,side conveyer line, cutting machine

    3 Delta


    Machine Main Specifications:


    Oven Length 18m Inner Conveyer length



    Foaming Height 1.0-1.25m Side Borar Adjustable Width 0.98-2.3m
    Foaming Width 1.0-2.25m Conveyer Belt Speed 0-8m/min
    Foaming Density 8-100kg/m3 Fall Plate Six section adjustable
    Total Power 130KW Total output 100-300kg/min
    Motor Dongguan/Siemens Pump U.S. Viking /Japan Shimadzu/China Shanghai

    Terms of Payment: 30% advance payment by T/T upon signing the contract

    70% covered by T/T before delivery or sight confirmed L/C.


    Installation and Start-up: 2 technicians will be assigned to coordinate installation,commissioning and

    training, cost for flight and suitable accommodation plus USD50/day will be charged additionally.


    Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.

    Shipping cost for parts to be replaced during warranty period have to be borne by the customer.





    Q: How many days for the install and testing of the machine?


    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.


    Q: For the cost of the engineer how much I need to pay?


    A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.


    Q:What kind of raw material tools we need to prepare for the testing?


    A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.


    Q: After the machine testing if we need some engineer to stay in our factory can you help to find?


    A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.


    Full Automatic Low Pressure Polyurethane Foam Machine , High Speed Foam Production Line


    Full Automatic Low Pressure Polyurethane Foam Machine , High Speed Foam Production Line
