Continuous Low Pressure Foam Machine , Soft Foam Making Machine With R.S. Pulling System

Continuous Low Pressure Foam Machine , Soft Foam Making Machine With R.S. Pulling System

    • Continuous Low Pressure Foam Machine , Soft Foam Making Machine With R.S. Pulling System
    • Continuous Low Pressure Foam Machine , Soft Foam Making Machine With R.S. Pulling System
  • Continuous Low Pressure Foam Machine , Soft Foam Making Machine With R.S. Pulling System

    Product Details:

    Place of Origin: Guangdong China (Mainland)
    Brand Name: ZHMACH
    Certification: CE Certificate
    Model Number: ZFP-2017

    Payment & Shipping Terms:

    Minimum Order Quantity: one set
    Price: inquiry
    Packaging Details: Paper and Film, Wooden case The whole set of one standard 13groups need 1*20GP and 2*40HQ.
    Delivery Time: 45 days
    Supply Ability: One set per month
    Contact Now
    Detailed Product Description
    Product Type: Flexible Foam Making Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
    Flow: Glass Flow Meter Check Flow Foam Type: Spray And Trough
    Control: Automatic PLC With Touch Screen Foaming Density: 8Kg/m3~100kg/m3
    Inverter: Siemens/ Delta /Danfoss System: R.S Pulling System With Plastic
    Voltage: 3PAHSE 380V Dimension(L*W*H): L35m*W4m*H3m

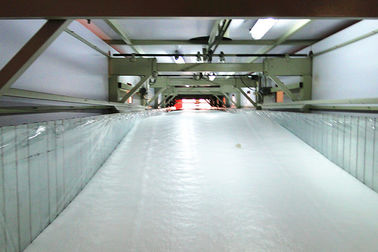

     Continuous Low Pressure Flexible Foam Making Machine With R.S. Pulling System




    Product Description



    Continuous Automatic Low Pressure Foaming Machine with R.S. Pulling System is the automatic horizontal continously foaming machine that make the furniture foam like sofa and mattress. The standard machine was together with 13 kinds of raw material.



    For the process of foaming:



    Loading all the raw materials inside the material tank with the loading system--control the temperature of the raw material inside the tank with the chiller--check the flow of all the raw materials before foaming--make some small sample test before foaming (make sure the flow and everthing is correct)--Put the karft paper and the plastic film-- foaming process


    [Specifications]



    Dimension L33M×W4M×H3M
    Foaming width 980mm~2250mm
    Foaming height Under 1200mm
    Foaming density 8kg/m3~100kg/m3
    Foaming speed 2000rpm~7000rpm


    (1) The whole machine parts specifications:


    1. Foaming control Platform(standard) L3m×W2.52m×H0.7m
    2. Oven declining board (standard) L9m×W0.98m~2.30m
    3. Oven side links(standard) L18m×W2.3m×H1.2m
    4. Oven machine frame(standard) L18m ×W4m×H3m
    5. Oven inner conveyer line (standard) L18m×W2.3m×H0.83m
    6. Foam block cutter machine (standard) W2.3m×H1.30m(saw/knife with cross type )


    Motor Guangdong brand
    Pump Viking pump & Chinese pump
    Invertor Siemens brand
    PLC Siemens
    Temperature Control system



    Type Use Specification Qty
    Big material tank PPG 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
    Big material tank POP 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system

    1



    Big material tank CaCo3 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
    Big material tank TDI 5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system

    1



    Big material tank Flame retardant 2m³/δ3m stainless steel, with filter system 1
    Big material tank MC 2m³/δ2mm stainless steel, with filter system 1
    Small material tank Si 180L/δ1mm stainless steel 1
    Small material tank A-33 180L/δ1mm stainless steel, with filter system 1
    Small material tank T9 180L/δ1mm stainless steel, with filter system 1
    Small material tank H2O 180L/δ1mm stainless steel 1
    Small material tank Color 180L/δ1mm stainless 1
    Small material tank Anti-yellow 180L/δ1mm stainless steel 1
    Small material tank Black 180L/δ1mm stainless steel 1
    Floor powder mixing tank PPG, POP, Powder 1.5m³/δ3mmA3 steel plate, with filter system 1
    Filter tank POP, Powder 1.5m³/δ4mmA3 steel plate 1

    Packing & shiping


    How is the packing of the machine?

    The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.

    How many container will be needed for the whole set of machine?

    Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.

    We will try the best way to pack all the machine well and also save the freight cost.

    FAQ



    Q: How many days for the install and testing of the machine?

    A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.

    Q: After the machine testing if we need some engineer to stay in our factory can you help to find?

    A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.

    Q:During the foaming if we have some problems abt the foam and the machine how can we do?

    A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.



    Continuous Low Pressure Foam Machine , Soft Foam Making Machine With R.S. Pulling System

    Continuous Low Pressure Foam Machine , Soft Foam Making Machine With R.S. Pulling System

    You are warmly welcome come and visit our factory.
