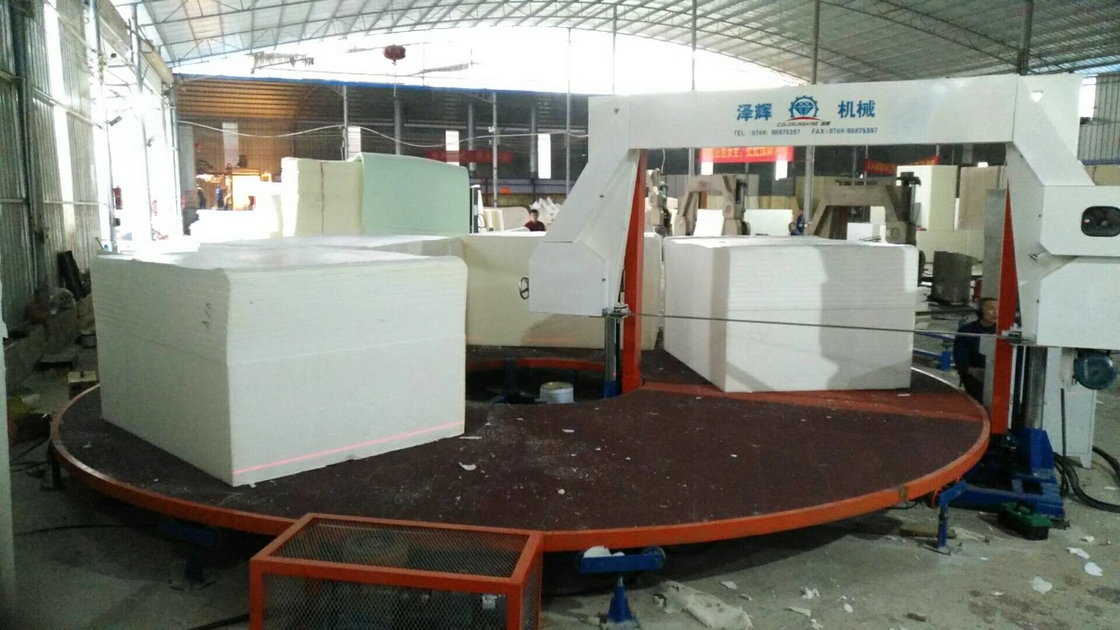

Automatic Cnc Horizontal Foam Sheet Cutter Machine L7720mm Blade Size

Automatic Cnc Horizontal Foam Sheet Cutter Machine L7720mm Blade Size

Automatic Cnc Horizontal Foam Sheet Cutter Machine L7720mm Blade Size
Automatic Cnc Horizontal Foam Sheet Cutter Machine L7720mm Blade Size
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: ZHMACH
Certification: CE Certificate
Model Number: ZHQG-1650/2150/2350
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: inquiry
Packaging Details: paper and plastic film if load together with the foaming machine line wooden case seperated
Delivery Time: 30 DAYS AFTER PAYMENT
Payment Terms: L/C, T/T, Western Union
Supply Ability: TWO SETS PER MONTH
Contact Now
Detailed Product Description
SYSTEM: Transducer Blade Size: L7720/8720/9120mm
Main Machine Exterial Size: L3550*W2650*H2350 No-Load Rotational Speed: 0-90m/min
Foam Collected: Foam Collected Saw Blade Diameter: 0.32
Voltage: 3 Phase AC 380V After-sales Service Provided: Engineers Available To Service Machinery Overseas
Cutting Way: Automatic Sheet Cutting Machine
High Light:

Automatic Cnc Foam Cutting Machine


L7720mm Horizontal Foam Sheet Cutter Machine


Horizontal Foam Sheet Cutter Machine

 Automatic Customized Horizontal Foam Cutting Machine With Transducer , 8.14KW
Automatic Sheet Foam Cutting Machine
this machine is a special equipment for softly prolyurethane foam slicing. Electron control cutter holder up and down sending cutter and platform back and forth, work pieces mustn't be take by manner, simple operation and platform's speed of back and forth is controlled by Fequency converter.
One-stop service, sponge production line, from foaming to cutting 2D, 3D shape and sheet.
Finish sponge Process and manufacture in aminimum of time.

The horizontal long sheet foam cutting machine adopts advanced frequency conversion system.
For sponge sheet cutting. Automatic number control. Easy to operate and accurate cutting. The machine can also be equipped with pressure rollers.

The automatic sheet foam cutting machine cuts the long foam block into pieces and automatically sets the thickness and then the main knife moves back and forth.
A fixed steel platform can be selected to increase the friction between the foam and the platform, improve the cutting effect, and increase the utilization rate of the sponge.


First, a design is created and optimized from the contents of the foam pack using computer-aided design (CAD) software. Once the design is complete, computer-aided manufacturing (CAM) software is used to convert the design dimensions into detailed digital instructions for a CNC machine to understand. The file information must also be translated into a language that the CNC machine can understand. This language is called G-code.

G-code essentially tells the machine what to do, such as the size and depth of cut, and the toolpath to follow. Once the CNC machine has received the G-code and set up the appropriate milling cutter and material, it's time to cut the final product from the foam. The precise mechanism and sharp blades enable the operator to cut any shape from the foam as long as the thickness corresponds to the thickness of the material.

sponge, flexible PU
Main Specification:




Cutting foam width 1650mm 2150mm


Cutting foam height 1200mm


Cutting foam thickness 2~60mm



Treading speed 0~90m/min


Blade length 7400mm



Total power 8.92kw 10.42kw


Mainframe weight 1500kg 1800kg


After-sale Service:

1. Our engineers is avilable to oversea for coordinate installation, commissioning and training. Cost for flight and suitable accommodation plus USD 50 per day each person will be charged additionally.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. 24 hours on line service each day, free technical support.
5. Machine has been adjusted and test before delivery.

Company Information

We are Dongguan Zehui Foaming Machinery Technology Co.,Ltd , the foam machine factory established in 2008 manufacture the automatic continuous foaming machine line and some relevant foam cutting machines. Zehui possesses strong technical advantages and many years of valuable experience in manufacturing foaming machines.Our products have been exported to all over the world ( including India, Africa, Europe, the Middle East, Southeast Asia, Sudan, Indonesia, Vietnam, Kenya, etc.) With a large volume of business, Qianghui develops rapidly. In January 2010, a subsidiary company has been established with a group of outstanding technical personals.
