|Industrial Zone of Tangshi, Gaobu town, DongGuan City GuangDong Province,Chinafirstname.lastname@example.org|
|Place of Origin:||Guangdong,China|
|Minimum Order Quantity:||one set|
|Packaging Details:||Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.|
|Delivery Time:||shipped in 45 days after payment|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||1.5 set per month|
|Name:||Low Pressure Foaming Machine||Overall Dimension:||35m*4.55m*3.2m|
|Density:||8Kg/m³~100Kg/m³||Product Width:||1200mm~2300mm (adjutable)|
|Mixing Head:||Siemens Tranducer||Maximum Capacity:||200~300L/min|
|Motor Types:||Guangdong||Raw Material:||PPG, TDI, MC, A33, T9, Silicone Oil, H2O, Pigment, Ect|
|Small Material Tank:||180L/δ1mm Stainless Steel||Filter Tank:||1.5m³/δ4mmA3 Steel Plate|
low pressure polyurethane foam machine,
foam mattress making machine,
Full Automatic Low Pressure Foam Machine
Full Automatic Low Pressure Foam Machine , Polyurethane Foam Production Line 300L / Min

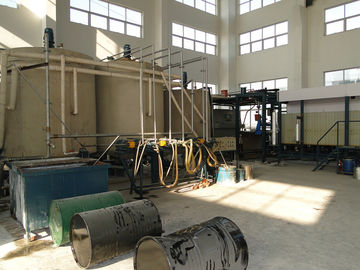

This machine is the automatic horizontal continuously foam making production line make the foam for mattress and sofa. This machine control by the PLC and invertor automatic with the touch screen. Can be save more than 200sets of formular inside it is easy for the user to operate the machine and we will also offer the formular and all the technology.
(1) The whole machine parts specifications:
1, Foaming controlling Platform (standard) L3m×W2.52m×H0.7m
2, Oven declining board (standard) L6.8m×W0.98m～2.3m
3, Oven side links (standard) L18m×W2.3m×H1.2m
4, Oven machine frame (standard) L18m ×W4m×H3m
5, Oven inner conveyer line (standard) L18m×W2.3m×H0.83m
6, Foam block cutter machine (standard) W2.3m×H1.30m(knife belt with cross type )
7, R.S. Pulling system one set
TDI, Flame retardant
Water, Ann, Si, Tin, Color Anti-yellow etc
Oven inner conveyer line,side conveyer line, cutting machine
Machine Main Specifications:
|Oven Length||18m||Inner Conveyer length||
|Foaming Height||1.0-1.25m||Side Borar Adjustable Width||0.98-2.3m|
|Foaming Width||1.0-2.25m||Conveyer Belt Speed||0-8m/min|
|Foaming Density||8-100kg/m3||Fall Plate||Six section adjustable|
|Total Power||130KW||Total output||100-300kg/min|
|Motor||Dongguan/Siemens||Pump||U.S. Viking /Japan Shimadzu/China Shanghai|
1).Fall Plate : L7000mm,Up/Down&Width can be adjustable by Electric Control (Taiwan AC Speed Drive and SIEMENS Motor).
2).Side Wall:L18000mm, Width can be adjustable by Electric Control (Taiwan AC Speed Drive and SIEMENS Motor).
3).Conveyor line: L18000mm,Electric Control (Taiwan AC Speed Drive and SIEMENS Motor).
4).Dry oven:L18000mm. Installed lighting with explosion protection.
5).Walkway: L18000mm.It’s length same as Side wall.
6). Exhaust Fan System: 3sets, 2.2kw, Exhaust passage is 18m with powerful made in China.
7). Feed foaming adopt Trough Type*1set
size:W2000mm*D300mm)or Sprayer Type*1set.
8). Side Paper Feed & Rewind System:1Set
Terms of Payment: 30% advance payment by T/T upon signing the contract
70% covered by T/T before delivery or sight confirmed L/C.
Installation and Start-up: 2 technicians will be assigned to coordinate installation,commissioning and
training, cost for flight and suitable accommodation plus USD50/day will be charged additionally.
Warranty: 12 months limited warranty. Starting from date of delivery excluding wear parts.
Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
Q: How many days for the install and testing of the machine?
A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.
Q: For the cost of the engineer how much I need to pay?
A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.
Q:What kind of raw material tools we need to prepare for the testing?
A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.
Q: After the machine testing if we need some engineer to stay in our factory can you help to find?
A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.
Contact Person: Wang
