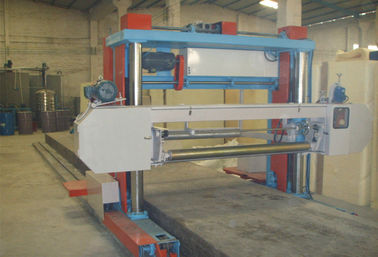

Rail Type 3D CNC Cutting Machine For Foam Block / Long Sheet Sponge PLC Control

Rail Type 3D CNC Cutting Machine For Foam Block / Long Sheet Sponge PLC Control

Rail Type 3D CNC Cutting Machine For Foam Block / Long Sheet Sponge PLC Control
video
Rail Type 3D CNC Cutting Machine For Foam Block / Long Sheet Sponge PLC Control
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: ZHMACH
Certification: CE Certificate
Model Number: ZHQG-1650/2150
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: inquiry
Packaging Details: paper and plastic film if load together with the foaming machine line wooden case seperated
Delivery Time: IN 30 DAYS AFTER PAYMENT
Payment Terms: Western Union, L/C, T/T
Supply Ability: TWO SETS PER MONTH
Contact Now
Detailed Product Description
Application: W1650-W2350mm Model Number: Long Sheet Foam Cutting Machine
No-Load Rotational Speed: 0-90m/min Saw Blade Diameter: 0.32
Voltage: 3 Phase AC 380V Dimensions: L3550*W2650*H2350mm
Max. Cutting Depth: 1.2m Cutting Way: Horizontal Long Sheet Foam Cutting
Cutting Control: Automatic Control By PLC Worktable Size: The Length Can Be Chosse
Highlight:

sponge cutter

,

foam cutting cnc machine

,

Rail Type Sponge Cutting Machine



Rail Type Foam Block Long Sheet Sponge Cutter Machine 1500KG 8.84KW

  • Cutting of infinitely long foam
  • Automatic digital control
  • The cutting angle can be adjusted
  • Continuous foam production necessary

The machine is mainly used for the cutting of infinitely long foam,it cuts foam in thin slices,it adopts automatic digital control.It can set the cutting thickness through the control box. The machine goes back and forth on teracks automatically;the cutting angle of knife belt can be changed from 0◦ to 5◦.The machine takes small area and easy to operate with high production efficiency, it is a necessary ancillary facility of continuous foam manufacturers.



Main Specification:



Model

ZHQG-1650

ZHQG-2150

ZHQG-2350

Cutting foam width 1650mm 2150mm

2350mm

Cutting foam height 1200mm 1200mm

1200mm

Cutting foam thickness 2~60mm 2~60mm

2~60mm



Treading speed 0~90m/min

0~90m/min

0~90m/min

Blade length 7400mm

8400mm

8800mm
Total power 8.92kw 10.42kw

10.42kw

Mainframe weight 1500kg 1800kg

2000kg



Advantage:



1. It adopts advanced imported inverter timing control techniques, Its running is reposeful.

2. The cutting is accurate, the production efficiency is high, it is assorted equipment of foam foaming machine. (This machine chooses the automatic-accept equipment)



Software question:



1. Q: what kind of CAD software the machine uses?



A: For the CAD software ,our machine uses 2004 or 2006(you prefer )



2. Q: about the CAD software, what's its name?



A: The name is Auto CAD Software



3. Q: where do you sell your machines mostly? which countries?



A: Our products have been exported to all over the world( including India, Africa, Europe, the Middle
East, Southeast Asia, Sudan, Indonesia, Vietnam, Kenya, etc.)



4. Q: the operating system which you use is windows, right?



what kind of windows? XP? or Windows 7?



A: Yes ,it is Windows XP.When operated,Our machine doesn't need to use network. We usually use XP for its stability.Also windows 7 is OK.



5. Q: is your software licensed or it's illegal? ("cracked")



A: our own profiler cutting software is develop by ourselves. It is original



Q: but the auto-cad and the windows? the auto-cad and the windows are original too

I am asking this question because our company use only licensed software



A: windows is licensed; AutoCAD is testing type. our machines do not include the licensed AutoCAD

if you have any drawing software, you can make the DXF file.



6. Q: the differences between our Fast Wire CNC Cutting machine and Oscillating Blade CNC Blade

Cutting Machine.



A:    First,Fast wire cutters use high -speed abrasive wire and Oscillating Blade cutters use high-speed ,

toothed blade.

      Secondly,Fast wire CNC cutter is better for the rigid or half rigid foams.and for soft foam material,

the better cutter is Oscillating Blade CNC cutter.



Thirdly,fast wire CNC cutters also can cut soft material.but the dust from the soft material needs an

extra dust pelletizing system and the soft material also is not good for the fast wire cutter itself.



7. Q: For reputation and website:



A: for the reputation ,we are 8 years golden supplier on Alibaba. And our engineers have researched our machine more and improved it better and better. We promise our machine will be as good as we told.

Even we keep 10% for the guarantee until to install the machine well and the client satisfy with our machine.



Rail Type 3D CNC Cutting Machine For Foam Block / Long Sheet Sponge PLC Control 0
