Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam

Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam

  • Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam
  • Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam
Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: ZHMACH
Certification: CE Certificate
Model Number: ZFP-2017
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: inquiry
Packaging Details: Paper and Film, Wooden case The whole set of one standard 13groups need 1*20GP and 2*40HQ.
Delivery Time: 45 days
Supply Ability: One set per month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas Flow: Glass Flow Meter Check Flow
Foaming Mode: Horizontal Foaming Foam Type: Spray And Trough
Control: Automatic PLC With Touch Screen Foaming Width: 980mm~2350mm
Foaming Height: Max 1300mm Foaming Density: 8Kg/m3~100kg/m3
Inverter: Siemens/ Delta /Danfoss System: R.S Pulling System With Plastic
High Light:

low pressure polyurethane foam machine

,

pu foam making machine



Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam





Product Description



The device is suitable for the production of hard/soft polyurethane foam with 6-100 KG/M3 density , which is used in the fields of furniture,bra,shoes,electronice,packaging,clothing,aviation,transportation,industrial and civil building heat preservation and energy-saving.The production line has automatic computer to control,PLC operating system with high degree of automation and low production costs,it is the ideal equipment for large enterprises.





[Specifications]



Dimension L35M×W4M×H3M
Foaming width 980mm~2250mm
Foaming height Under 1200mm
Foaming density 8kg/m3~100kg/m3
Foaming speed 2000rpm~7000rpm







(1) The whole machine parts specifications:



1. Foaming control Platform(standard) L3m×W2.52m×H0.7m

2. Oven declining board (standard) L9m×W0.98m~2.30m

3. Oven side links(standard) L18m×W2.3m×H1.2m

4. Oven machine frame(standard) L18m ×W4m×H3m

5. Oven inner conveyer line (standard) L18m×W2.3m×H0.83m

6. Foam block cutter machine (standard) W2.3m×H1.30m(saw/knife with cross type )



(2) Main technique specification



1. Total length 33m× width 4m×height 3m

2. Foaming material Group: 13 groups, man-machine interface, automatically computer control

3. Foaming width 980mm~2250mm

4. Foaming height Max 1300mm

5. Foaming density 8Kg/m³~100Kg/m³

6. Foaming speed 2000r/min~7000r/min

7. Max total output 300KG/min



Motor Guangdong brand
Pump Viking pump & Chinese pump
Invertor Siemens brand
PLC Siemens
Temperature Control system





Material pot types: (The work pressure in the pot is normal pressure)



Type Use

Specification



Qty
Big material tank PPG 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
Big material tank POP 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system

1



Big material tank CaCo3 5m³/δ5mmA3 steel plate, with temperature controlling, stirrer, filter system 1
Big material tank TDI 5m³/δ5mm A3 steel plate, with temperature controlling, stirrer, filter system

1



Big material tank Flame retardant

2m³/δ3m stainless steel, with filter system



1
Big material tank MC

2m³/δ2mm stainless steel, with filter system



1
Small material tank Si 180L/δ1mm stainless steel 1
Small material tank A-33 180L/δ1mm stainless steel, with filter system 1
Small material tank T9 180L/δ1mm stainless steel, with filter system 1
Small material tank H2O 180L/δ1mm stainless steel 1
Small material tank Color 180L/δ1mm stainless 1
Small material tank Anti-yellow 180L/δ1mm stainless steel 1
Small material tank Black 180L/δ1mm stainless steel 1
Floor powder mixing tank PPG, POP, Powder 1.5m³/δ3mmA3 steel plate, with filter system 1
Filter tank POP, Powder

1.5m³/δ4mmA3 steel plate



1





Remark:The above only for reference. All the data is subjected to sold products.




Foaming control platform

Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam 0

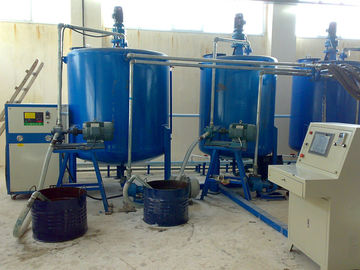

Mixing head and material tanks

Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam 1

Packing & shiping


How is the packing of the machine?



The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.



How many container will be needed for the whole set of machine?



Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.



We will try the best way to pack all the machine well and also save the freight cost.







Our Services



We will help to design the layout of the machine that put in your factory.

We will send 2-4 experience engineers to install and testing the machines.

We will teach your engineer how to operate the machine and how to maintain the machines.

We will give you the machine operation manual and the best formulation for target products that you are going to make.





FAQ



Q: How many days for the install and testing of the machine?



A: After all the machine in your factory we will send 1-2 engineer help to install the machine you must send someone to help about 30 days installation will finished. After that one electrician and one foaming engineer will come to connecting the cable and run the machine in 15days. Total 45days the machine can be running.



Q: For the cost of the engineer how much I need to pay?



A: You need to pay USD50 one day for one engineer and also need to pay for the visa fee turn-round ticket fee and food hotel.



Q:What kind of raw material tools we need to prepare for the testing?



A: We will send you a list for the tools that you need to prepare for testing and also can help to buy if you required.



Q: After the machine testing if we need some engineer to stay in our factory can you help to find?



A: Sure we can help to hire one experience engineer to work in your factory but you need to discuss the salary and all details with him.



Q:During the foaming if we have some problems abt the foam and the machine how can we do?



A: You can just call our after sale manager explain for the situation or send some picture we will help to handle within 24hours.



Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam 2


Automatic Low Pressure Spray Foam Injection Machine For Polyurethane Foam 3



You are warmly welcome come and visit our factory.
