Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine With Japaness Pump

Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine With Japaness Pump

  • Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine With Japaness Pump
  • Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine With Japaness Pump
Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine With Japaness Pump
Product Details:
Place of Origin: Guangdong China (Mainland)
Brand Name: ZHMACH
Certification: CE Certificate
Model Number: ZFP-2017
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: inquiry
Packaging Details: Paper and Film, Wooden case The whole set of one standard 13groups need 1*20GP and 2*40HQ.
Delivery Time: 45 days
Supply Ability: One set per month
Contact Now
Detailed Product Description
The Whole Produce-line: Steel Produce-line Frame, Conveyer Line: Square Tube
Oven Length: 18M Cold-hot Water Machine: Refrigeration 10HP,electro Thermal 36kw
FA10-25F Glass Flow Meter: 600~6000L/H Dinner Coveyer Length: 18m
Fall Plate: 7 Section Adjustable Engineers Available To Service Machinery Overseas: Φ25*2000mm
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

foam mattress making machine

,

pu foam making machine

,

Japaness Pump Low Pressure Foam Machine



Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine with Japaness Pump​




Product Description

This foam production line is an automatic continous foaming machine for producing flexible polyurethane foam used in furniture,shoe material,packing,electron,garment and transportation industrial.it's the ideal production equipment for large-scale foaming.



1, Dimension:Total length 40m×Total width 4m×Total Height 3m
2, Foaming material Group: 13 groups, man-machine interface, both manual and computerized control.
3, Foaming width: 980mm~2350mm
4, Foaming height: Max 1300mm
5, Foaming density: 8Kg/m³~100kg/m³
6, Foaming speed: 2000r/min~7000r/min
7, Max total output:300kg/min
8, Material spraying way:
① The way of down sprayer head (upper, down, front, back can be adjusted)
② The way of trough overflow pipe.
9, Controlling way of foaming:
①PLC controlling, can continuously foaming two different formulas in one time
②All inverter controlling foaming and work in phase with the production line
③Oven declining board height and width can be adjusted by control box.
④Oven side links width can be adjusted by control box.
10, Mixing –head motor: 37kw
11, Total power: About 90kw



[Specifications]


(1) The whole machine parts specifications:



Oven Length 18m
Foam Height 1.0-1.25m
Foam Width 1.0-2.25m
foam desity 8-200kg/m³
total power 130KW
inner coveyer length 18m
side board adjustable width 0.98-2.3m
conveyer belt speed 0-8m/min
fall plate seven section adjustable
total output 100-300kg/min
machine dimension L33× W4.5 ×H3.2m


Transducer Types:



Model Power/kw

Use

Qty Brand
G120 37

Mixing head

1 Siemens
G120 7.5

POP, CaCo3

2 Siemens
G120 5.5

PPG,

1 Siemens
G120 4

TDI, Flame retardant

2 Siemens
G120 2.2

MC, color

2 Siemens
G120 1.5

Water, Ann, Si, Tin, Color Anti-yellow etc

7 Siemens
G120 0.75

Spray head

1 Siemens
VFD-B 5.5/3.7/1.5

Oven inner conveyer line,side

conveyer line, cutting machine

3 Delta



Package:



How is the packing of the machine?



The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.



How many container will be needed for the whole set of machine?



For the standard YAFA-Automatic continous foam machine Total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.

We will try the best way to pack all the machine well and also save the freight cost.


Our Services


1. We will help to design the layout of the machine that put in your factory.
2. We will send 2-4 experience engineers to install and testing the machines.
3. We will teach your engineer how to operate the machine and how to maintain the machines.
4. We will give you the machine operation manual and the best formulation for target products that you are going to make.
5. We will help to buy the best raw material for making the foam if you needed.

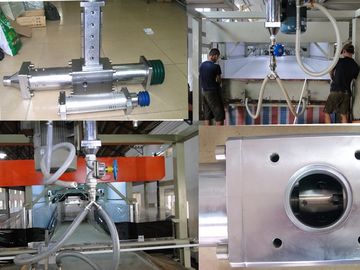

Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine With Japaness Pump 0


Horizontal Low Pressure Foam Machine , Flexible Polyurethane Foaming Machine With Japaness Pump 1



You are warmly welcome come and visit our factory.
