Polyurethane CNC Foam Block Cutting Machine Knife Belt Type / Saw Toothed Type

Polyurethane CNC Foam Block Cutting Machine Knife Belt Type / Saw Toothed Type

  • Polyurethane CNC Foam Block Cutting Machine Knife Belt Type / Saw Toothed Type
  • Polyurethane CNC Foam Block Cutting Machine Knife Belt Type / Saw Toothed Type
Polyurethane CNC Foam Block Cutting Machine Knife Belt Type / Saw Toothed Type
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: ZHMACH
Certification: CE Certificate
Model Number: ZHQG-2400A/B
Payment & Shipping Terms:
Minimum Order Quantity: one set
Price: inquiry
Packaging Details: Foam Block Cutting Machine to be packed in wooden case.
Delivery Time: 30 days after receive payment
Payment Terms: Western Union, L/C, T/T
Supply Ability: two sets per month
Contact Now
Detailed Product Description
Dimension(L*W*H): L2.8*W1.5*H2.5m After-sales Service Provided: Engineers Available To Service Machinery Overseas
Engineers Available To Service Machinery Overseas: 0-8m/min Control: Automatic PLC Control
Cutting Protected: Blade Box Cover Protected Voltage: 380V
Cutting Blade: Knife Blade / Saw Tooth Blade Cutting Setting: Separated Control Box
Cutting Way: From Left To Right Machine Install: Together With The Automatic Continuously Foaming Machine Line
Highlight:

cnc foam cutter

,

cnc router foam cutter



Polyurethane CNC Foam Block Cutting Machine with Knife Belt Type / Saw-Toothed Type



Applications:



Polyurethane foam making .Sliced, shaped processing and Contour Cutting of PU, EVA, EPE, EPS.

Widely used in construction, interior decoration, advertising, toys, models, aerospace models,

furniture manufacturing, secondary packaging, Insulation Materials and other field.

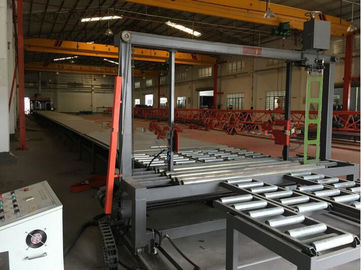

ZHQG-2400A Foam Cutting Machine (knife belt type)

  • digital control
  • Installed on the foam conveyor line
  • for cutting horizontal continuous foam into large pieces
  • Moving left and right

cnc foam cutter machine installed on the foam conveyor line,it is used for continuous foam cut to some length, in order to reansport,storage and processing.This machine adopts digital control,the knife belt is thin and sharp and moving left and right to cut horizontally moved foam,the machine is simple to operate and cut precisely.



Foam Block Cutting Machine is together with the horizontal continuously foaming machine line to cut the long foam block into the specify length that for other prcess like sheet cutting



ZHQG-2400A



Cutting foam height

2400mm

Cutting foam width

1300mm
Blade frame moving speed
21m/min

Conveyer belt speed

0~8m/mm

Power

4.8kw

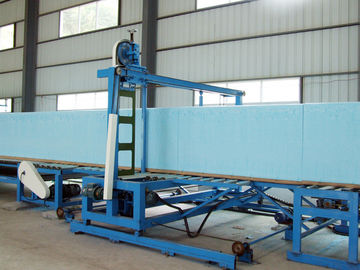

ZHQG-2400B Foam Cutting Machine (saw-toothed)

  • digital control
  • Installed on the foam conveyor line
  • for cutting horizontal continuous foam into large pieces
  • The two saw teeth move up and down in high speed to cut foam

ZHQG-2400B



Cutting foam Height

2400mm

Cutting foam width

1300mm
Blade frame moving speed
21m/min

Conveyer belt speed

0~8m/mm

Power

6.7kw



Specifications



Max Foam width for cutting:

2400mm

Max Foam height for cutting:

1400mm

Min Foam height for cutting:

500mm

The Foam density range:

13kg/m3 to 60kg/m3

International Standards :

ISO 40%: 120N-400N

ASTM Standards:

ASTM 65%: 300N-1150N

Cutting Thickness:

3-400mm

Cutting Speed:

0~12m/min

Position of blade

-2° to 5°

Cutter blade type:

Teeth Blade
Blade box guide Width:70mm, Thickness: 7mm, Length: over 2600mm

Blade specification

Width: 30mm, Thickness: 0.45mm

Inclined system

Manual & Automatic

Total Power:

5.29kw

Voltage:

380V, 50HZ, 3 Phase

Machine size:

1500mm*4550mm*3000mm

Machine weight:

1500kgs

Height from conveyor surface to floor:

800mm
By default, how many pcs of cutting knife is on the machine already? one
By default, how many pcs of grinding wheel is on the machine already? two
By default, how many pcs of Rotary encoder is on the machine already? one

What is the operation method?

PLC control

Key parts and brand

QHMACH

PLC

1PC,SIMENS

Touch screen

1PC,SIMENS

A/C Contactor

1PC,Panasonic

Motor

4PC, Wanxin(Taiwan brand)
Motor with Gear Reducer 2PC, Wanxin(Taiwan brand)

Main Electric Parts

Schneider

Button & Switch

Schneider

Spare parts


  Cutting blade knife (5pcs), Cutting teeth blade ( 5pcs ), Grinding Wheel (10pcs), Rotary encoder (1pc).
Price Details

Total Price(FOB USD)

6800-8800 per set
(EXW RMB to Port)
Tax rebate for RMB
Price until:

Port

shenzhen

Lead time:

30days after payment
Payment term:  T/T 30% advance before production.the balance of total amount 70% will be paid before shippment (The bank charge for buyer's account).
Guarantee: one year
Packing method disassembled and is wrapped by PE film firstly, then wrapped again by wooden cases.
Total Volume Packed
Installation

Intallation is needed?

together with production line

For how many days including Training?

about 30 days

How many engineer?

1-3 engineer

Engineer speaks English?

NO

Visa + Trip cost

paid by customer
Fty Info
Established In 2008
Website Address http://www.foammachine.en.alibaba.com



Our Services


1.  Foam Block Cutting Machine will be independent control by the foam block control box during the foaming need to set the data.

2. We will help to send engineer to teach how to operate and maintance this machine.

3. We will send 2-4 experience engineers to install and testing the machines.

4. We will teach your engineer how to operate the machine and how to maintain the machines.
